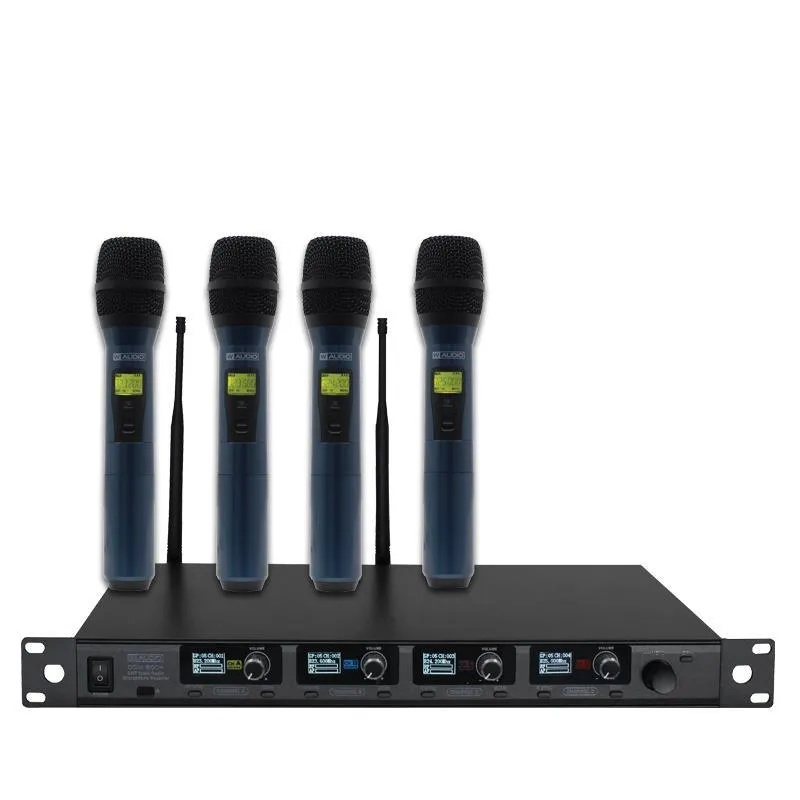

DQM series wireless microphones are quad UHF handheld systems designed for the professional user featuring a full width receiver for the ultimate in RF stability. They have a tuning bandwidth up to 9Mhz 2Mhz with 99 selectable frequencies on the 823-832Mhz CH65 and 863-865Mhz license-free CH70 bands. These systems offer crystal clear sound reproduction and rock-solid reliability, along with outstanding vocal reproduction and stable wireless connectivity allowing freedom of movement on stage. Handheld transmitters feature ergonomic design with a rackmount housing to stand up to the rigours of the road. The flexibility of the handheld systems may be increased by purchasing the additional DQM belt pack kit.
- UHF band, Phase Lock Loop (PLL) offering stable RF transmission
- Preset frequency groups plus a user definable frequency group allows users to tune the operating frequency of each channel
- OLED display offers a wide viewing angle while remaining bright in darkened conditions
- Frequency, Channel, RF and AF signal strength meters
- Combined use jog wheel button operation for fast menu navigation
- 1U rack metal housing with integrated brackets, include antenna cable interface for front-mount antenna
- Integrated antenna splitter for reduced RF interference

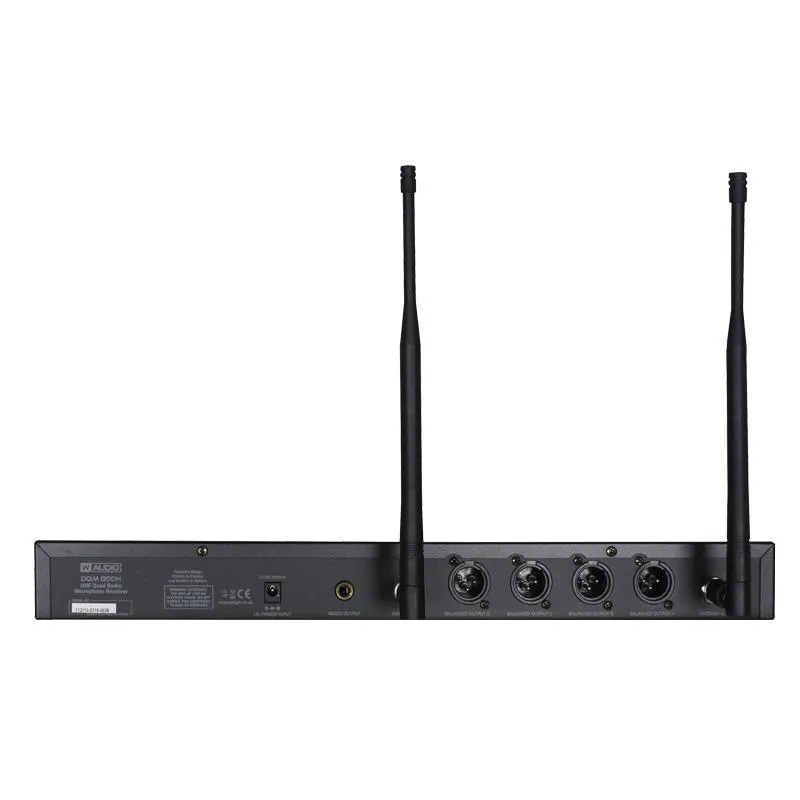

- Balanced XLR output for each channel plus unbalanced mixed output
- Automatic frequency SCAN function
- IR infrared frequency synchronisation via infrared interface
- Mute circuitry for reduced noise
- Flat frequency response: 50Hz-16KHz
- Dynamic, cardioid handheld microphone capsule

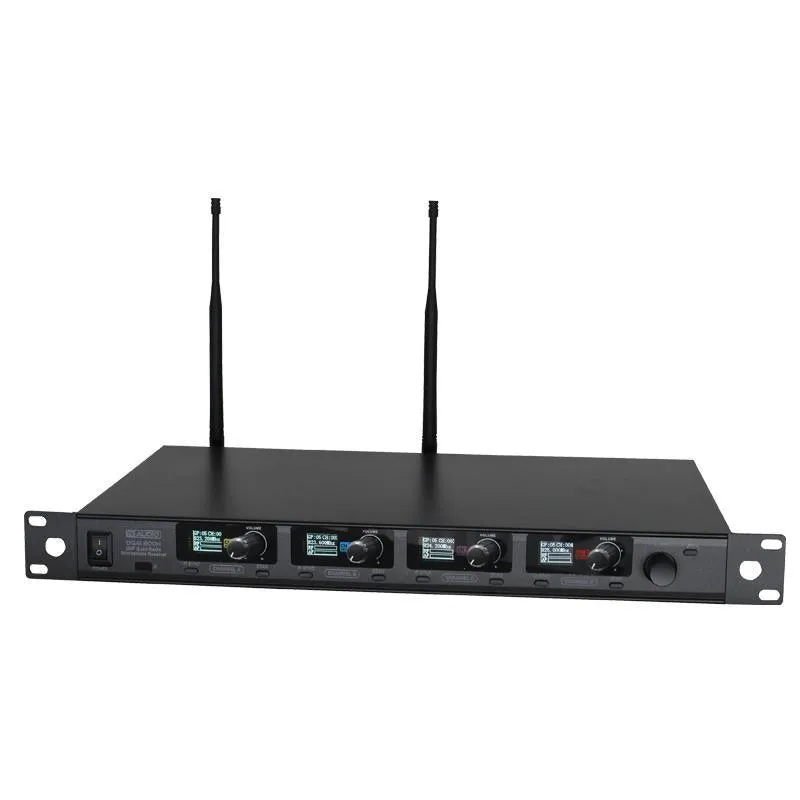

- 1U full width rack mount receiver
- Up to 8 DQM transmitters can be used simultaneously when configured manually (one 800mhz and one 600mhz)
- Audio output level: 400mV
- Dynamic range: 96dB
- Receiver specifications:
- Power supply: 14V DC (mains adaptor supplied)
- Dimensions (H x W x D): 45 x 482 x 260mm
- Weight: 2.3kg

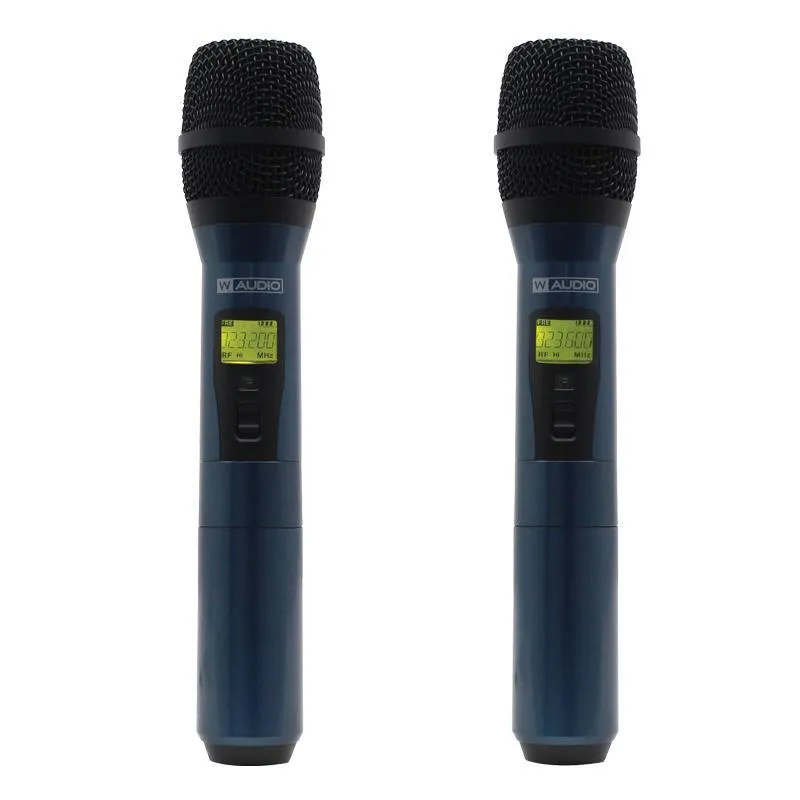

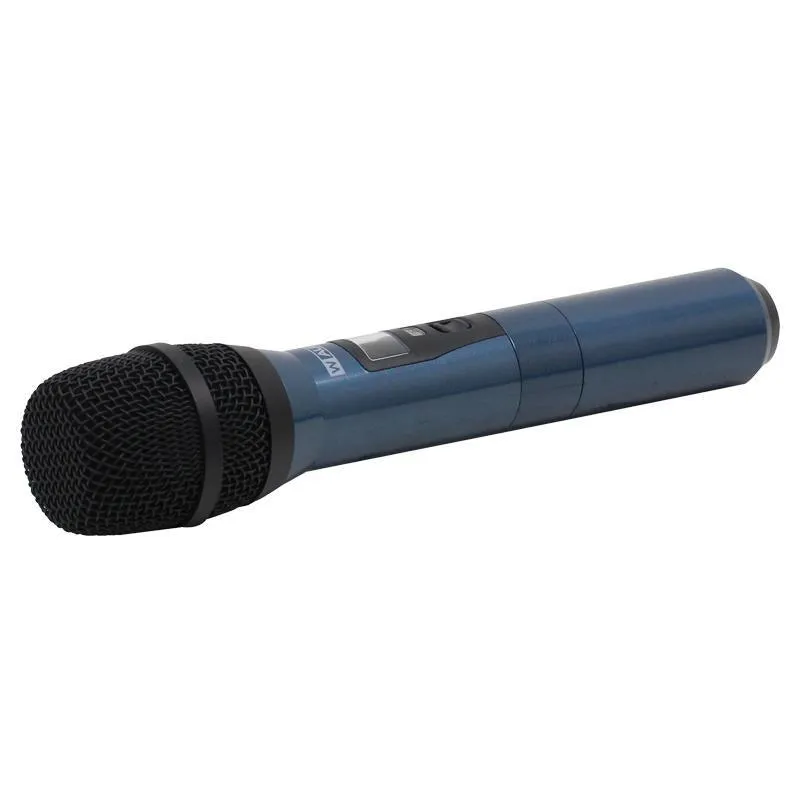

- Handheld Transmitter:
- Battery configuration: 2 x 1.5V AA (not supplied)
- Dimensions (H x W x D): 250 x 45 x 45mm
- Weight: 0.4kg
- Included in the system: 1 x receiver, 2 x removable antenna, 2 x antenna extension cables, 4 x handheld transmitters and 1 x 14V 1.2A mains PSU
